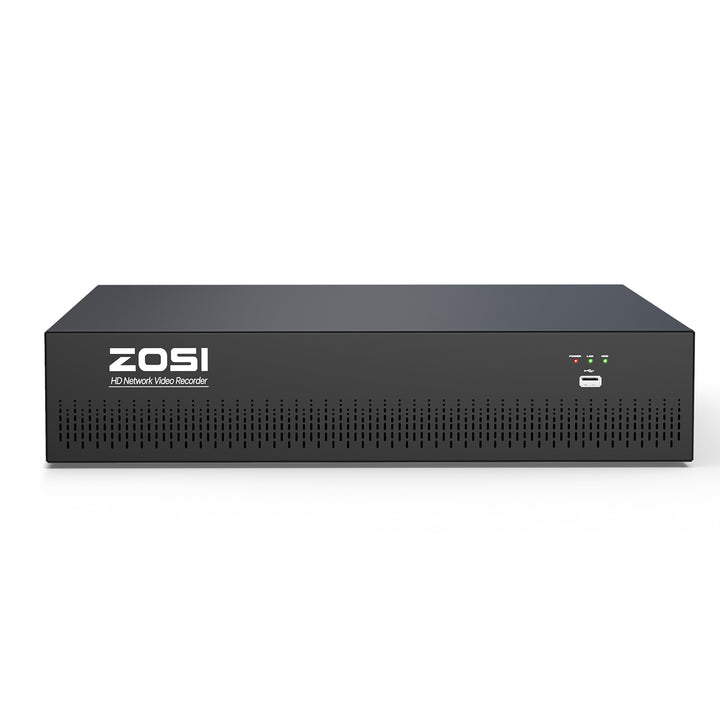

4K 64 Channel Network Video Recorder, Work with PoE Security Camera(No hard drive included)
Coming soon
15% OFF Coupon :
OFFLimited Time Deal
Safe Checkout
Warranty
Supports up to 64 channels of IPC video output;
Supports access, preview, storage, and playback of 8MP HD network video;
Can be used with front-end cameras to detect people, faces, and vehicles, providing audible and visual alarms, active defense, and property safety;
Configurable human detection zones and motion detection sensitivity;
Supports simultaneous HDMI and VGA output, with 4K resolution supported on HDMI output;
Supports volume adjustment during image preview and playback;
Query and playback recorded files;

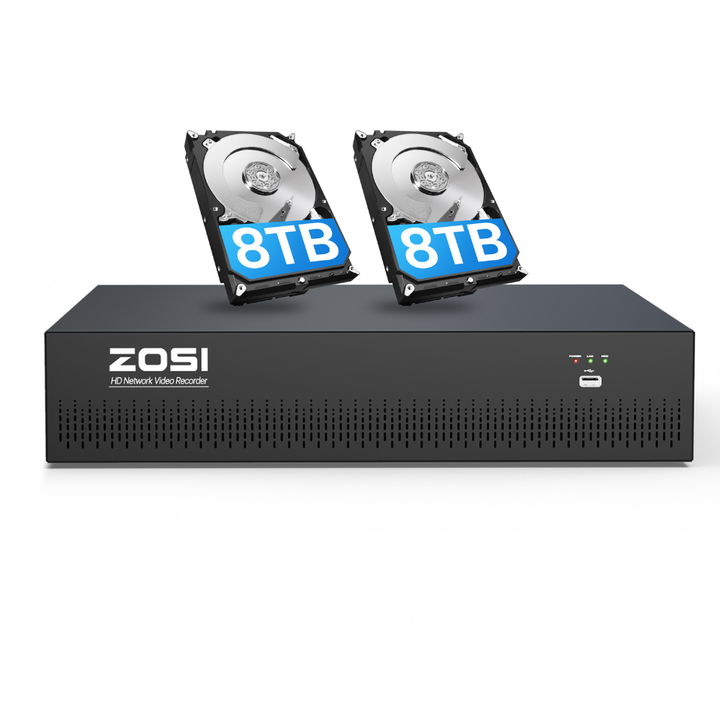

Supports 8 SATA HDD ports, supporting up to 8TB hard drives;
Supports TUTK and ONVIF protocol access platforms;
Supports 10 or more languages;
Adopts a brand-new QT interface with a user-friendly design;
Supports remote camera access on multiple platforms, including Android, iOS, and Windows, for real-time viewing of live broadcasts and playback;
Supports remote IPC management and remote upgrades of front-end IPCs
| Product Information | Product Model | ZR64PH |
| Product SKU | 1NR-648H0-US | |
| Version Number | HW.V01.1600.04T | |
| Audio and video codec parameters | VGA Output | 1port VGA:1920×1080，1280×1024，1024×768 |
| HDMI output | 2-way HDMI HDMI1: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1024×768 HDMI2:1920×1080, 1280×1024, 1024×768" |
|
| Video decoding format | Supports H.265+/H.265/H.264 decoding | |
| Recording resolution | 2MP/3MP/4MP/5MP/4K | |
| Audio decoding format | G.711A | |
| Number of video input channels | 64 channel | |
| Synchronous playback | Supports up to 4 channels of playback | |
| Image settings | Supports settings for front-end camera brightness, saturation, color, etc. | |
| Intelligent Analysis | Normal alarm | Motion detection, video loss |
| Abnormal alarm | Hard drive full, IP conflict, camera lost, hard drive lost | |
| Intelligent detection | Human detection, vehicle detection, face detection, pet detection, flame detection, area detection (area intrusion/area departure/coming and going/wandering detection) | |
| Local smart application | Passenger flow statistics | |
| Email alarm | Support (supports sending screenshots via email, with the attachment being the main stream image) | |
| Alarm push | Support motion detection APP alarm push | |
| Network Management | Network protocol | IPv4、TCP/IP、DDNS、UDP、DHCP、P2P、NTP、SMTP、Http/Https、RTSP、Onvif |
| Network input bandwidth | 256Mbps | |
| Network output bandwidth | 256Mbps | |
| Client | AVSS supports Windows system and MacBook | |
| Mobile phone | ZOSI Smart, Vsees (support Android, iOS systems） | |
| Permissions | Support different levels of device operation permissions (channel access, video playback, remote viewing of specific channel permissions) | |
| Voice assistant (Alexa) | / | |
| Hard Drive | Drive slot | 8 SATA ports |
| Maximum capacity | Supports a maximum capacity of 8TB | |
| SD card | / | |
| Cloud storage | / | |
| Video | Recording mode | Manual recording, timed recording, intelligent detection recording |
| Playback mode | Instant replay, regular replay, event replay | |
| Backup mode | Regular backup, event backup | |
| External interface | Network interface | Two Internet Ports: One RJ45 10M/100M/1000M adaptive Ethernet port for connecting to the camera Downlink Port: One RJ45 10M/100M/1000M adaptive Ethernet port for connecting to the router |
| Video output | 2 HDMI, 1 VGA | |
| PoE interface | / | |
| Audio output | 3.5mm audio output interface | |
| Audio input | 3.5mm audio input interface | |
| eSATA interface | External hard drive | |
| RS232 | √ | |
| RS485 | √ | |
| Alarm output interface | √ | |
| USB interface | 1*USB 2.0，1*USB 3.0 | |

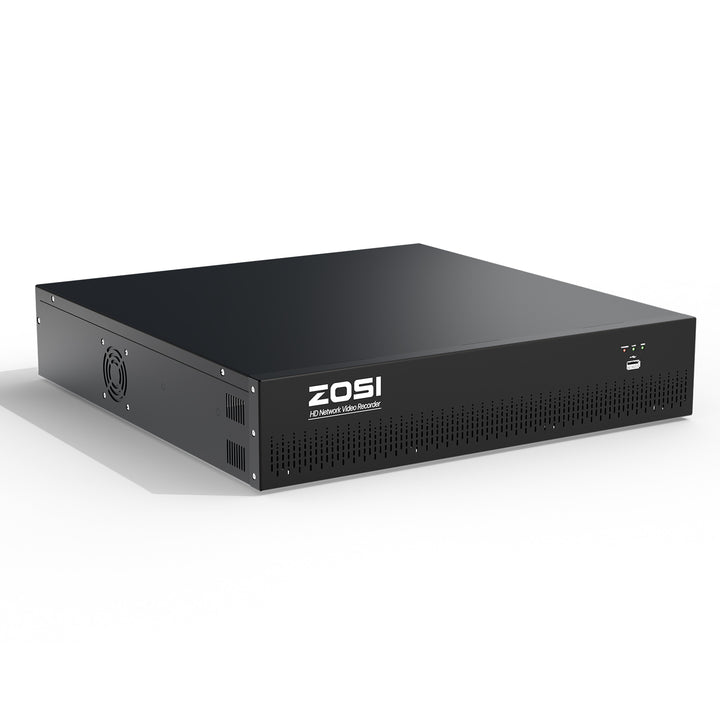

| General Specifications | Product material | Aluminum alloy chassis |
| Operating temperature and humidity | -10℃～55℃, humidity less than 90% (no condensation) | |
| Power supply | Built-in independent switching power supply Input: 100-240V~50/60Hz | |
| Dimensions (mm) | 440mm× 450mm ×90mm | |
| Power consumption (excluding hard drive) | ≤250W | |
| Weight (kg) | ≤6.1Kg | |
| Safety certification | FCC，CE | |

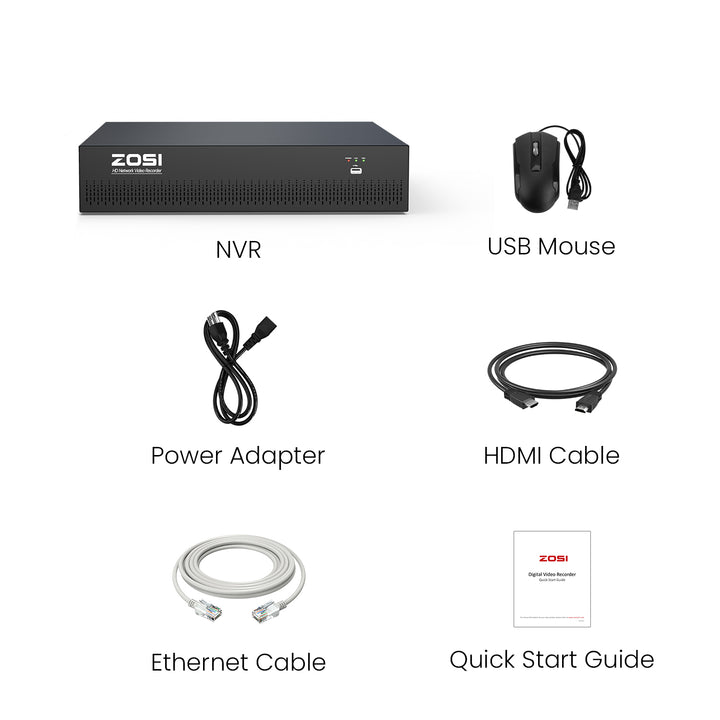

| Standard contents | Video recorder host, power cord, manual, mouse, 1m network cable, HDMI high-definition cable | |
| Usage scenarios | Home interior, shops etc. |
